JSRD05-1300R | Delta Robot

JSRD05-1300R D4 delta robot mechanics are ideal for top loading pick & place processes where moving conveyors are used. The way these robots are built make them very useful for fast production lines. You will find these robots in end-of-line packaging in the food and pharmaceutical industries and also in agriculture environments. Johnson Smart D4 robot mechanics are the best solution if you want to automate and speed up your process.

Delta robot mechanics are the solution for two-dimensional movements with the possibility to add rotation. the D4s are the solution. The smaller D4s are often used in end-of-line packaging, cosmetics, consumer electronics and pharmaceuticals. The larger D4s are found in food packaging and other industries where higher payload solutions are required.

Johnson Smart provides versatile pick-and-place solutions, available as open robot mechanics compatible with any machine control platform, or as an integrated solution with B&R controllers in a Machine-Centric Robotics setup. This unique blend of design freedom and synchronized performance allows us to deliver the most effective solution tailored to your specific ap

Basic parameters

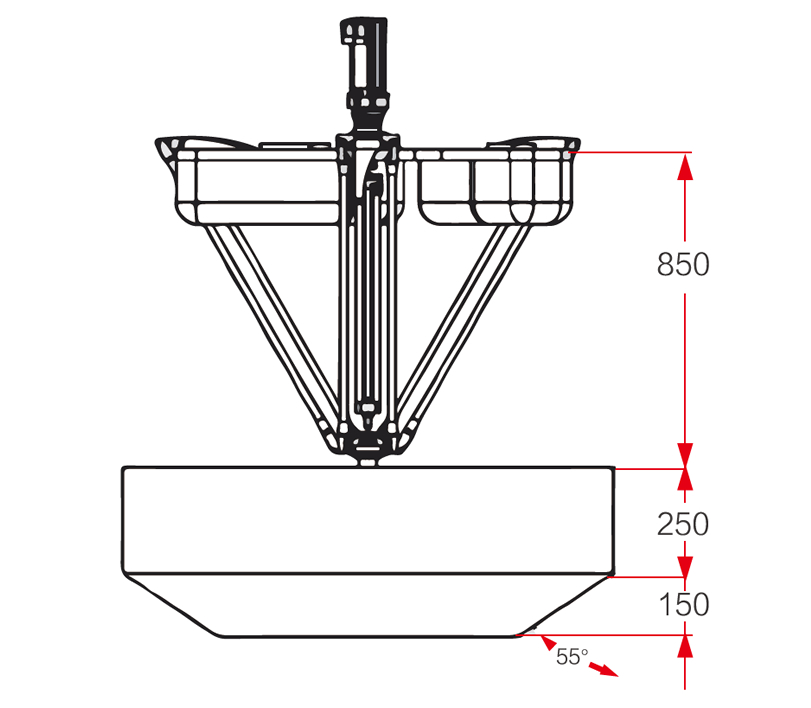

Rated working range:ø 1300 x 250 mm
Payload※:5kg
Pick and place actions:maximum.300P/min
Position repeatabilityX,Y,Z*:±0.1mm
Protection:IP55
Noise Level:<68dB(A)
Weight:65kg
